The Screen is suitable for removal of polythene, plastic, wood & other light debris within the waste water flow of all medium and deep channels.
| Enquiry Code: | J3843 Bi-Water Infra Screen |
Further Information
The Biwater Infra Screen operates as follows:

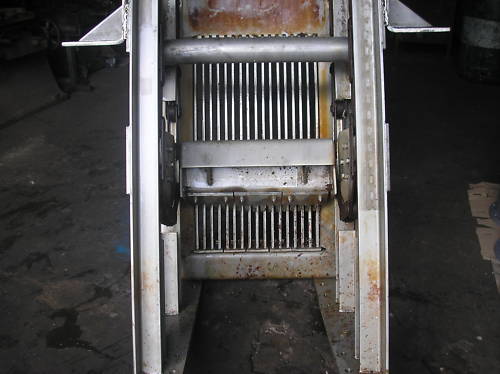

As the wastewater flows through the vertical grating at the bottom of the infra screen, debris is trapped by same. The debris is intermittently transported upward from the vertical grating; onto the beaching plate and finally over the discharge chute, by 3 evenly spaced carriers fitted with multiple tines. The carriers are fastened to 2 endless chains which are driven by a motorised double reduction gearbox fitted with overload clutch. The electrical control panel includes a timer which can be variably adjusted to allow intermittent to continuous running, dependant on the volume of debris within the wastewater.
The following are available EX-Stock; subject to prior sale :-

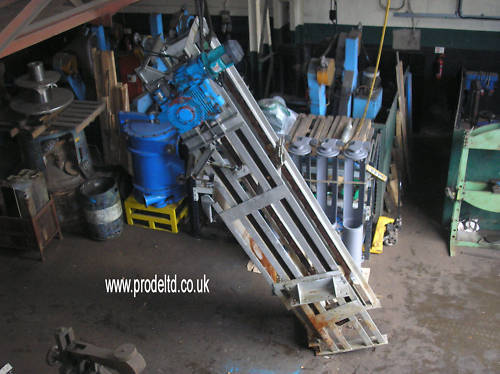

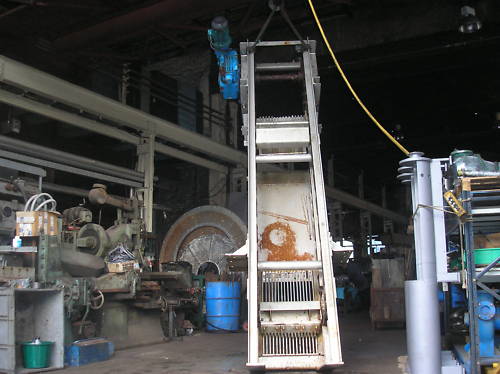

1 off Infra Screen (Manufactured in 316 stainless steel) Model No. 800; Serial No. P3092;
remanufactured to ‘near new’ condition, details as follows :-
| Nominal Height above ground: | 2899 mm |
| Nominal Depth in channel: | 1175 mm + or – 250 mm |
| Nominal Width of channel: | 800 mm or greater |
| Electrical Control Panel Voltage: | 110 |
| Drive Motor Voltage: | 415 |
| Drive Motor Kw: | 2.2 |
| Drive Motor Poles: | 4 (1500 R.P.M.) |
| Gear Box Manufacturer: | Flender |
| Gear Box Type: | CDDA 160 |
| Gear Box Ratio: | 418 : 1 |
| Clutch Manufacturer: | Mayr |
| Clutch Type: | Ratchetting Torque Limiting |
| Clutch Model No.: | 494.520.3 |
